EMF 2007.5-2013 Dodge 4WD 2500/3500 Track Bar Bushing Replacement

Fits:  2007.5-2013 Dodge Ram 2500/3500 OEM FRONT Track Bars with 16mm bolt.

IF YOU HAVE A 2007 OR 2013 MODEL, DOUBLE CHECK THAT THE BOLT SIZE IS 16mm AND NOT 14mm OR 18mm.  EARLY 2007 MODELS AND LATE 2013 MODELS HAVE A DIFFERENT TRACK BAR BOLT SIZE.

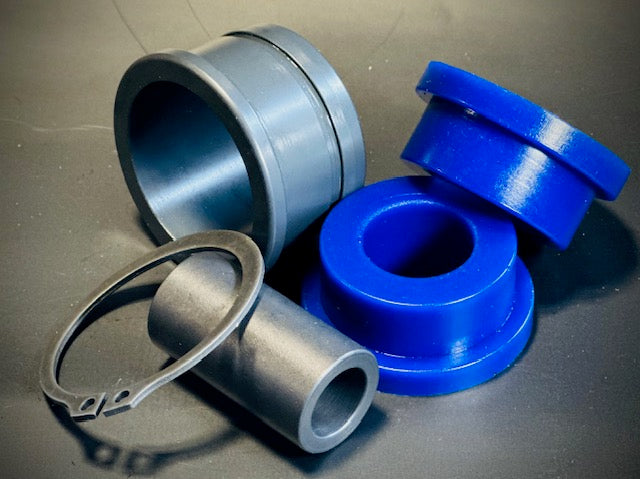

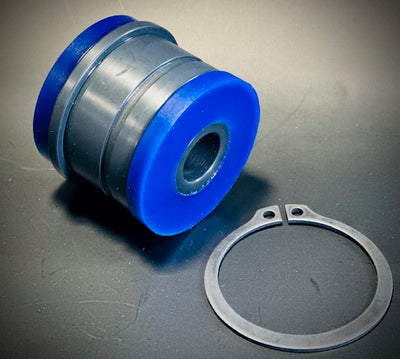

Includes: 1 Bushing Housing, 1 Snap Ring pair of bushings (2 halves) & 1 sleeve

** NOTE, THE FRONT TRACK BAR TAKES 2 BUSHINGS.... IF YOU WANT TO REPLACE THEM BOTH, ORDER 2... IF YOU JUST NEED ONE REPLACED, ORDER 1 **

Made to replace the Track Bar Bushings on a stock OEM Dodge Track Bar with a 16mm Bolt Hole.

EMF Dodge Trackbar Bushing Replacement - Made in Canada out of a high quality, high-durometer material to ensure a long lasting product.  Bushing Housing and Inner Sleeve is made from 4140 HTSR Chromoly Steel and then Gas Nitrided.

BUSHING MATERIAL SPECS

MADE IN CANADA

DUROMETER (HARDNESS) - 95 +/- 5

SPECIFIC GRAVITY - 1.13 G/CC

TENSILE STRENGTH - 6500 PSI

100% MODULUS - 1800 PSI

FLEXURAL MODULUS - 4300 PSI

ULTIMATE ELONGATION - 380%

COMPRESSION SET - 22HR @ +70 DEGREES - 36%

TEMPERATURE RANGE - -40 TO +92 DEGREES CELSIUS (-40 TO +200 DEGREES FARENHEIT)

BELL BRITTLE POINT - -63 DEGREES CELSIUS (-80 DEGREES FARENHEIT)

BAYSHORE REBOUND - 40%

ABRASION RESISTANCE - 70 MM3

TEAR RESISTANCE, INITIAL - 700 PLI

TEAR RESISTANCE, PROPOGATION - 130 PLI
