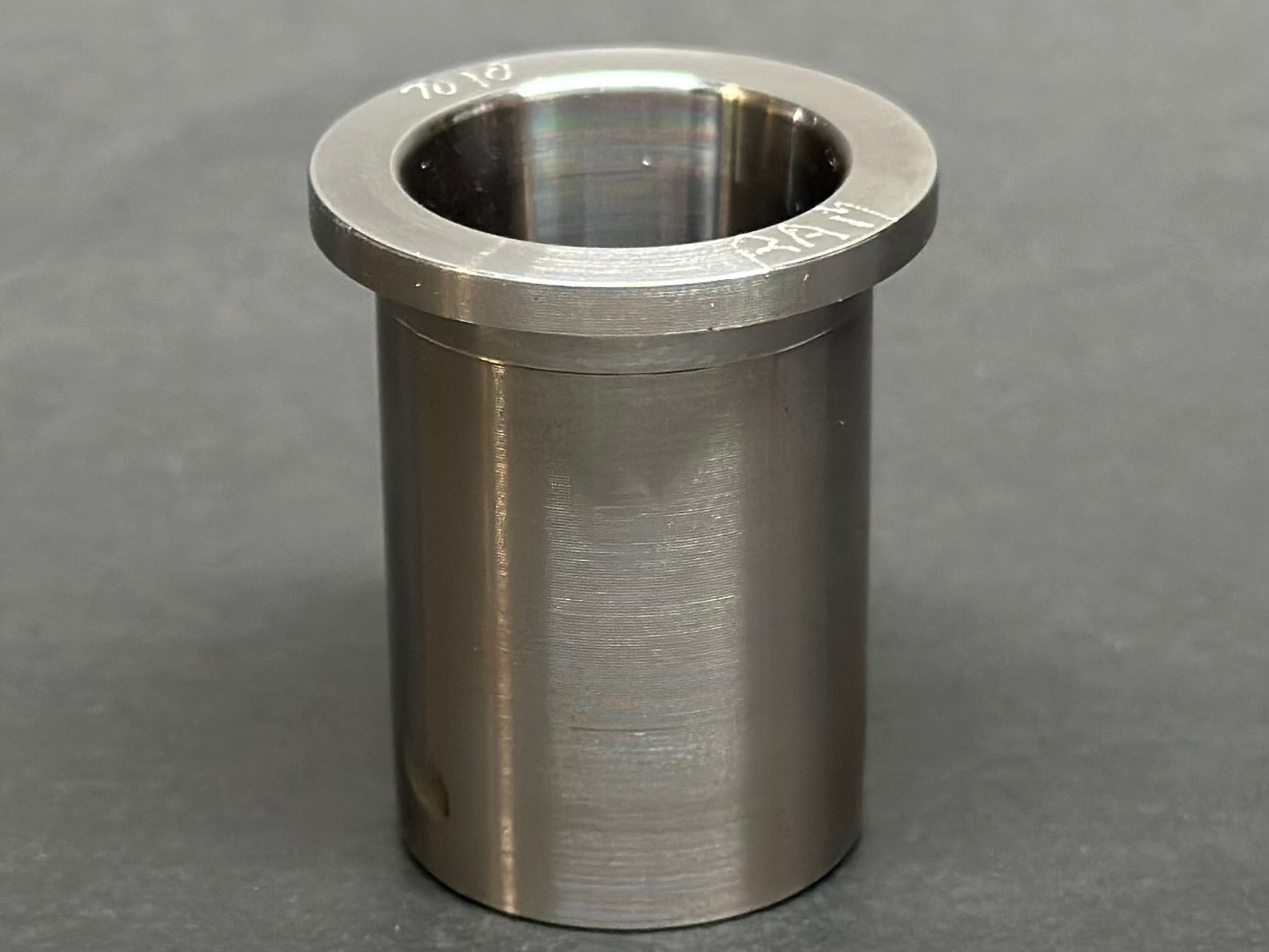

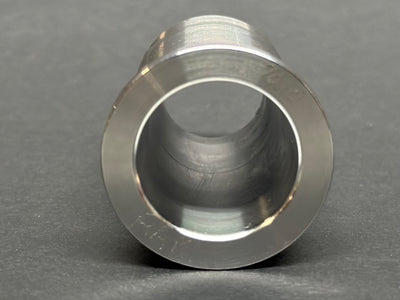

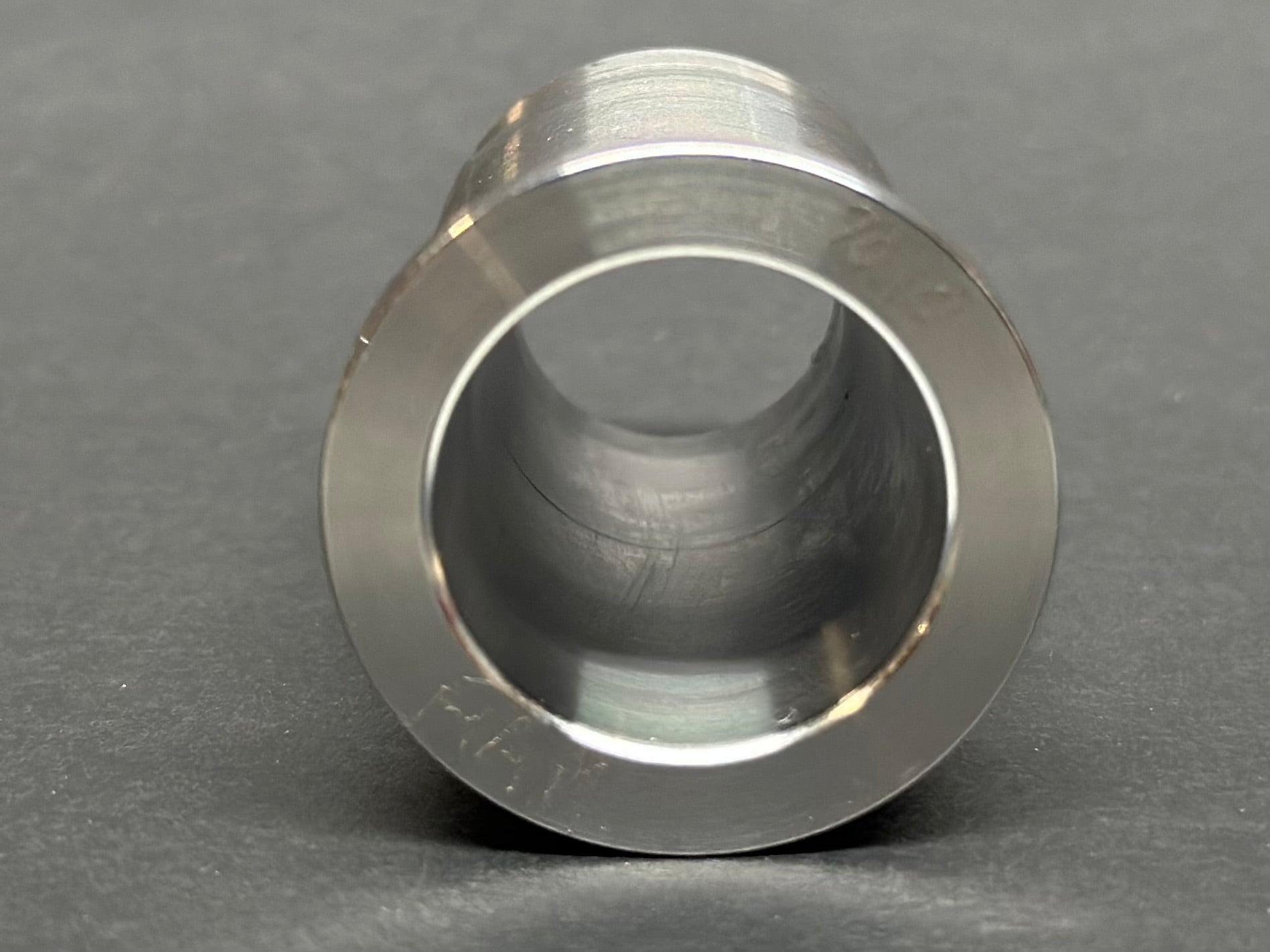

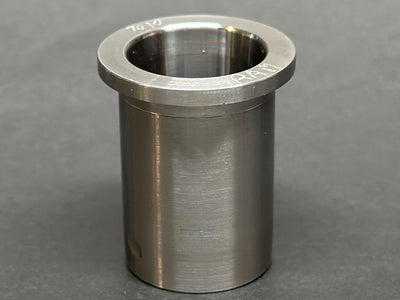

4th and 5th Gen AAM Knuckle 2013.5-2024 Ram 2500/3500 Repair Sleeves from EMF Ball Joints
Drilled out your Steering Knuckles and now want to go back to a stock OEM taper for your tie rod ends or lower draglink?
Or do you have a damaged Tie Rod Taper or Lower Draglink Tapered hole on the knuckle?
Fear not, these EMF repair sleeves are just what you need! It's impossible to find new knuckles these days so when your tapered hole is wallowed out or you drilled it out because some shop talked you into putting crappy heim joints in there that didn't last - you can get your truck back to a clean, stock Dodge AAM OEM tapered hole by using these repair sleeves.
The tapered sleeve fits both Driver side and Passenger Side Tie Rod holes, as well as the Lower Draglink hole.
If you want to fix just one hole, order one. If you want to fix all 3 holes, order 3.
** You will be required to drill the holes to a 7/8" Straight hole and then these sleeves will press in tight and you will have a stock OEM tapered hole again to use.
While they should press in tight, we still do recommend you weld the sleeves to the knuckle. Welding skills will be required.
This job is not for someone who doesn't know what they are doing!! You need to ensure you drill the holes as straight as possible so these perform as they should. If you do not know much about vehicles or fabrication - you can either take your truck to someone who does or purchase new knuckles instead.
EMF is not responsible for anyone who does not drill the holes out properly or install these correctly. This product is offered as an alternate solution only to replacing the knuckles. All liabilities are on you as the customer!
